Its design with two motorised Z axes allows for ergonomic work and great comfort.
The Z axis positioned under the laser allows for an individual positioning of the laser in relation to the operator’s height.

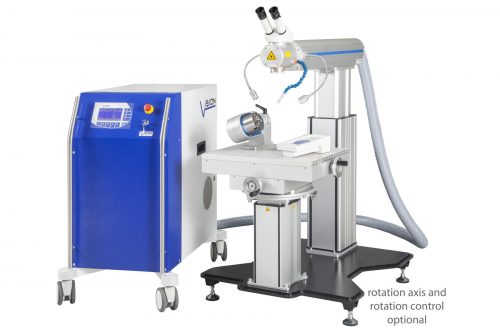

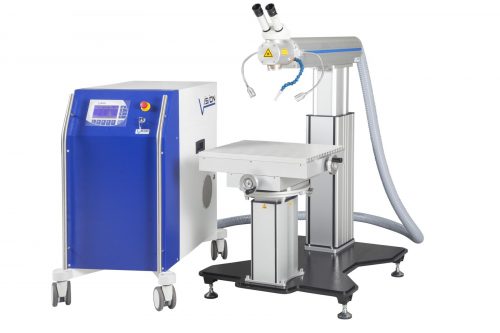

The combination of the motorised Z axis and manual XY unit mounted onto the base allows for the precise positioning of the work piece in relation to the laser. Furthermore, the combination of the two Z axes allows to work from very high components. Naturally, the system can be expanded to other degrees of freedom with optionally available tilt and swivel optics or mechanical swivel and tilt platforms.
| Technical Data | LWI V Nd:YAG 120 W |
|---|---|
| laser safety class | 4 |
| beam source | Nd:YAG, flashlamp, pulsed |
| wavelength | 1064 nm |
| max. pulse energy | 70 joule |
| max. peak power | 17 kW |
| max. average power | 120 W |
| energy adjustment mode | voltage or PWM mode |
| voltage | 160-500V |
| pulse width | 1-20 ms |
| pulse frequency | 1-20 hz |
| pulse fill | 10 - 100 % |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 200 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, water/air heat-exchanger, temperature controlled fan |
| cooling option | external cooler optional, integrated bypass-controller |
| electrical supply | 3 phases, 400V /50 hz |
| power consumption | 4 kW |
| Dimensions |
| Technical Data | LWI V Nd:YAG 150 W |
|---|---|
| laser safety class | 4 |
| beam source | Nd:YAG, flashlamp, pulsed |
| wavelength | 1064 nm |
| max. pulse energy | 70 joule |
| max. peak power | 17 kW |
| max. average power | 150 W |
| energy adjustment mode | voltage or PWM mode |
| voltage | 160-500V |
| pulse width | 1-20 ms |
| pulse frequency | 1-20 hz |
| pulse fill | 10 - 100 % |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 200 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, water/air heat-exchanger, temperature controlled fan |
| cooling option | external cooler optional, integrated bypass-controller |
| electrical supply | 3 phases, 400V /50 hz |
| power consumption | 4 kW |
| Dimensions |
| Technical Data | LWI V Nd:YAG 200 W |
|---|---|
| laser safety class | 4 |
| beam source | Nd:YAG, flashlamp, pulsed |
| wavelength | 1064 nm |
| max. pulse energy | 70 joule |
| max. peak power | 17 kW |
| max. average power | 200 W |
| energy adjustment mode | voltage or PWM mode |
| voltage | 200-500V |
| pulse width | 1-30 ms |
| pulse frequency | 1-30 hz |
| pulse fill | 10 - 100 % |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 200 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, water/water heat-exchanger, external cooling required |
| cooling option | external cooling required |
| electrical supply | 3 phases, 400V /50 hz |
| power consumption | 4 kW |
| Dimensions |
| Technical Data | LWI V FSS 150 W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 15 Joule |
| max. peak power | 1,5 kW |
| max. average power | 150 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | - |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | - |
| electrical supply | 1-phasig, 90-250V, 50/60 hz |
| power consumption | 800 W |
| Dimensions |
| Technical Data | LWI V FSS 300 W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 30 Joule |
| max. peak power | 3 kW |
| max. average power | 300 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | - |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | - |
| electrical supply | 1 Phase , 90-250V, 50/60 hz |
| power consumption | 1,2 kW |
| Dimensions |

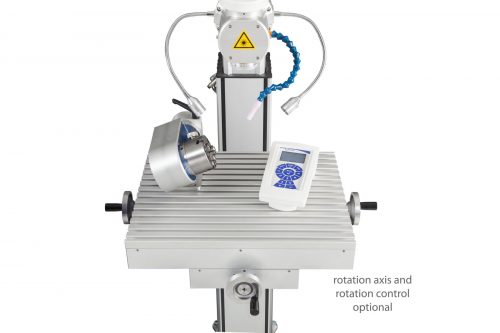

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming. Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.

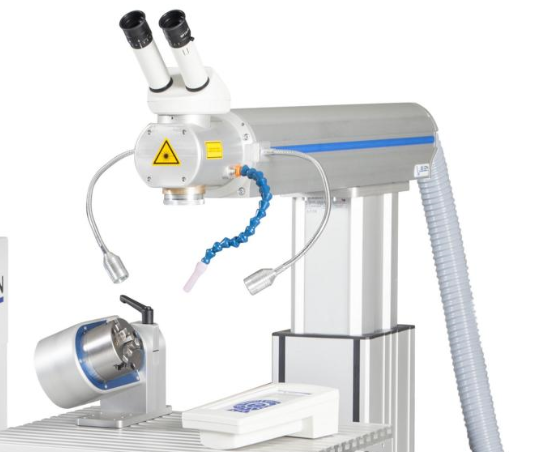

For ergonomic and flexible work: the eyepoint of the microscope can be individually adjusted to the operator’s height thanks to the adjustable laser head. This allows for effortless work with a changing and healthy posture. There is also the possibility of expanding the working area under the laser head where necessary.
