LWI V Unixx III

When working on very big pieces...

This unit has been developed for areas where the laser work shop needs to be prepared for any type of job. Regardless of whether thousands of small pipes need to be welded or cut today and a three ton mould delivery tomorrow, the UNIxX III will fulfils any task with the highest precision.

The many software tools provided will ensure speedy and high precision processing.

The range of 700mm in the x axis and 400mm in the y axis enable you to process big components without the necessity of them being repositioned.

Small pieces with the weight up to 300kg can be processed on the working table aforementioned in UNIXX and the working position pivoted accordingly.

The positioning and height of the working table has been designed to level with a normal office chair to allow one to sit and work ergonomically, and provides enough legroom. The sturdy table tipped at a well positioned angle ensures that there are no obstacles in your way.

When working on very big pieces, the working table can simple be swivelled to the side to allow the component to be placed under the laser by forklift. The extended range length enables you to reach the area to be repaired quickly.

The head is equipped with a bracket allowing for rotation of the laser head and enables you to weld on edges and angles.

Warning: count(): Parameter must be an array or an object that implements Countable in /mnt/web216/a1/79/5337379/htdocs/main/wp-content/themes/vision/single-product.php on line 83

Yag 200
Yag 150
Yag 120
Teach in

Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backwards using the joystick and can also shift its position by offsetting the start point.
Schutzgas

Programmable shielding gas post-flooding

In order to eliminate the oxidation of the welded joint directly after it has been welded, the times during which the shielding gas ist still conducted on the welded joint following the welding can be individually set.
PWM

In the lower power range, which depends upon high stability, traditional lasers are inclinined toward a low „pulse to pulse stability“ and thus to a non-uniform welding result. The Pulse Width Modulation (PWM) gives a vastly more fine and stable coordination, as the internal energy supply here works in the area of the optimal output.
Pulse shaping

Free pulse shaping enables the setting and saving of all possible variations in the pulse process. Materials with different thermal coefficients of expansion thus show a clearly better welding behaviour - your laser´s area of application thus expands.
pulse distance synchronization

Provides a constant pulse overlapping through the dynamic synchronization of the pulse trigger with the axis movement. PDS ensures replicable welding results with different speeds and consistent, homogenous weld joints in all movement situations. Therefore, a higher operating speed can be reached.
on axis light

This allows you to see into deep crevices or holes which would be in darkness if lateral illumination were used. The illumination comes alongside the optical beam and always illuminates accurately from above.
On axis gas

On-axis shielding gas supply

A reliable on-axis shielding gas supply enables perfect welding even with highly-sensitive materials, such as titanium, for example.

The welded joint is always flooded with shielding gas under 90 degrees. This prevents the sort of shadow effects and swirling which occurs when a lateral gas supply is used.
FSS 300
FSS 150
Rotation Axis

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming.

Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.
Display

Large display with backlighting

The large backlit display provides the user with a direct view of all the important operating parameters. Adjustment limits are visualized.

The adjustment of the parameters themselves takes place via the work chamber´s control elements.

Specifications

Technical Data	LWI V Nd:YAG 120 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	120 W
energy adjustment mode	voltage or PWM mode
voltage	160-500V
pulse width	1-20 ms
pulse frequency	1-20 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, water/air heat-exchanger, temperature controlled fan
cooling option	external cooler optional, integrated bypass-controller
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions

Technical Data	LWI V Nd:YAG 150 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	150 W
energy adjustment mode	voltage or PWM mode
voltage	160-500V
pulse width	1-20 ms
pulse frequency	1-20 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, water/air heat-exchanger, temperature controlled fan
cooling option	external cooler optional, integrated bypass-controller
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions

Technical Data	LWI V Nd:YAG 200 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	200 W
energy adjustment mode	voltage or PWM mode
voltage	200-500V
pulse width	1-30 ms
pulse frequency	1-30 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, water/water heat-exchanger, external cooling required
cooling option	external cooling required
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions

Technical Data	LWI V Nd:YAG 300 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	300 W
energy adjustment mode	voltage or PWM mode
voltage	200-700V
pulse width	1-30 ms
pulse frequency	1-30 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, water/water heat-exchanger, external cooling required
cooling option	external cooling required
electrical supply	3 phases, 400V /50 hz
power consumption	9 kW
dimensions

Technical Data	LWI V FSS 150 W
laser safety class	4
beam source	FSS FullSolidState Fibrelaser, Diodes
wavelength	1070 nm
max. pulse energy	15 Joule
max. peak power	1,5 kW
max. average power	150 W
energy adjustment mode	current
voltage	10 - 100 %
pulse width	0,1 - 50 ms /cw
pulse frequency	1-100 hz
pulse fill	-
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	100 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, temperature controlled fan
cooling option	-
electrical supply	1-phasig, 90-250V, 50/60 hz
power consumption	800 W
dimensions

Technical Data	LWI V FSS 300 W
laser safety class	4
beam source	FSS FullSolidState Fibrelaser, Diodes
wavelength	1070 nm
max. pulse energy	30 Joule
max. peak power	3 kW
max. average power	300 W
energy adjustment mode	current
voltage	10 - 100 %
pulse width	0,1 - 50 ms /cw
pulse frequency	1-100 hz
pulse fill	-
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	100 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, temperature controlled fan
cooling option	-
electrical supply	1 Phase , 90-250V, 50/60 hz
power consumption	1,2 kW
dimensions

Technical Data	LWI V FSS 450 W
laser safety class	4
beam source	FSS FullSolidState Fibrelaser, Diodes
wavelength	1070 nm
max. pulse energy	45 Joule
max. peak power	4,5 kW
max. average power	450 W
energy adjustment mode	current
voltage	10 - 100 %
pulse width	0,1 - 50 ms /cw
pulse frequency	1-100 hz
pulse fill	-
PWM mode	-
focal length	190 mm
beam diameter	100 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, temperature controlled fan
cooling option	-
electrical supply	1 Phase , 90-250V, 50/60 hz
power consumption	2,5 kW
dimensions

Technical Data	LWI V FSS 600W
laser safety class	4
beam source	FSS FullSolidState Fibrelaser, Diodes
wavelength	1070 nm
max. pulse energy	60 Joule
max. peak power	6 kW
max. average power	600 W
energy adjustment mode	current
voltage	10 - 100 %
pulse width	0,1 - 50 ms /cw
pulse frequency	1-100 hz
pulse fill
PWM mode
focal length	190 mm (120 mm, 300 mm)
beam diameter	100 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, temperature controlled fan
cooling option
electrical supply	1 Phase , 90-250V, 50/60 hz
power consumption	2,5 kW
dimensions

CAN-Step: The intelligent axis control

Precisely controls axis movements. This extends manual welding by its sophisticated automatic and programable functions. Touchscreen and Joystick terminals directly in your workspace provide a unique, simple control concept. Thanks to the completely integrated hardware, a separate computer is not needed.

PDS – Pulse Distance Synchronization

Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backward using the joystick and can also shift its position by offsetting the start point.

„Teach in“ programming

PCD – 3 Point Cycle Definition

You can process circular type contours by using the PCD function with the XY axis. The circular path is precisely defined through the teaching of only three support points. You do not need to know the center or the diameter; the position on the work piece is optional. You can move along the programmed course either forward or backward by using the joystick.

combinable with a rotating device

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming. Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.

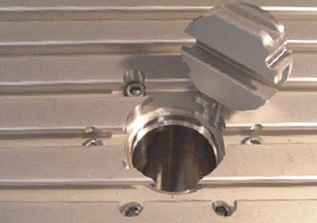

Integrated work table with aperture

The useful high load capacity work table can be revolved under the laser head. The plain-milled slot profile worktop can be rotated and is locked. Supports and worktops provide free lead through. This allows you to weld long work pieces smoothly.
